Welcome at the electronic HID lamp ballasts page of MULTIPOINT

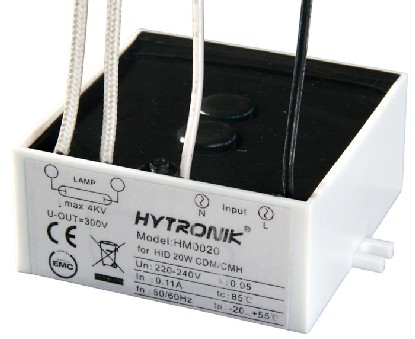

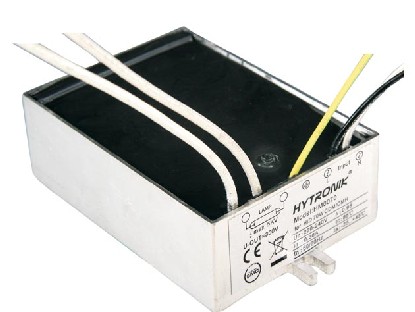

MULTIPOINT HID ballasts, build-in types (IP43), with lead wiresThese HID ballast with lead wires are suitable for both CDM, CHM and HCI lamps. They combine compact, high power factor and low THD (<10) with automatic self diagnose. They indicate failures and abnormal operations like ignition failure, overheat, lamp failure, EOL etc. These MULTIPOINT HID ballasts are available in 20, 35, 70 and 150 Watt, wire lenght 20 cm, other wire lenghts on demand. Model:HM0020, 20W, 220-240 Volt, 50/60 Hz, -20 ~ +55 C, 50.000 hoursHM0035, 35W, 220-240 Volt, 50/60 Hz, -20 ~ +55 C, 50,000 hours HM0070, 70W, 220-240 Volt, 50/60 Hz, -20 ~ +50 C, 50,000 hours HM0150, 150W, 220-240 Volt, 50/60 Hz, -25 ~ +50 C,50,000 hours

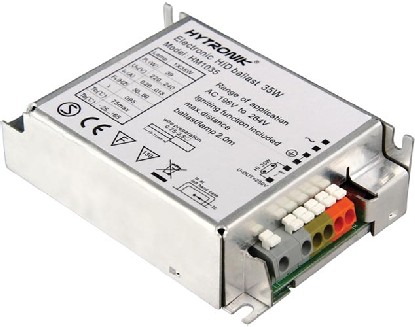

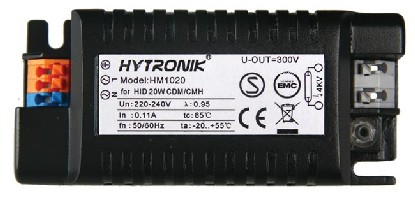

MULTIPOINT HID ballasts, build-in types (IP20), with terminal blocksThese MULTIPOINT HID ballast with push-in terminals are suitable for both CDM-TM, CHM and HCI lamps. They combine compact, high power factor and low THD (<10) with automatic self diagnose. They indicate failures and abnormal operations like ignition failure, overheat, lamp failure, EOL etc. These MULTIPOINT HID ballasts are available in 20, 35, 70 and 150 Watt. Model:HM1020, 20W, 220-240 Volt, 50/60 Hz, -20 ~ +55 C, 50.000 hoursHM1035, 35W, 220-240 Volt, 50/60 Hz, -20 ~ +55 C, 50,000 hours HM1070, 70W, 220-240 Volt, 50/60 Hz, -20 ~ +45 C, 50,000 hours HM1150, 150W, 220-240 Volt, 50/60 Hz, -25 ~ +50 C, 50,000 hours General MULTIPOINT HID ballast features:Suitable for CDM-TM, CMH, and HCI. Steady lamp performance by mains fluctuation and lamp tolerance. Constant lamp power output and stable lamp color temperature. Protection against empty load damage. Protection against overheat damage. Protection against lamp end of life (EOL) damage. Protection against lamp voltage to high damage. Protection against lamp voltage to low damage. Automatic restart on removing of faulty obstacles and power reset. Pulse interval ignition. Over 90% constant lumen factor during economical lamp life. The comprehensive energy saving of 35% saves airco energy. High power factor (>0.95) Low THD (<10) Automatic self diagnose. 50,000 service hours at Tc max. Failure & abnormal diagnose and indication:The MULTIPOINT HID ballasts are programmed with diagnosis on failure and abnormal operation. The MULTIPOINT HID ballasts monitors the fixture and send error signals to a LED in the ballast. The signal is carried through an optical fiber to a Lens on the enclosure of the fixture. The signal is displayed as a number of red flashes which indicates different errors. The error signals are indicated in 10 seconds intervals and 1 second between each flash. Failure & abnormal function codes:1 Flash: Perfect function, NO failure, Action: NO action needed. 2 Flashes: Over-heated, Ballast gets too hot, Action: Analyze reason. 3 Flashes: Lamp failure, Ignition timed out, Action: Analyze reason. 4 Flashes: Lamp failure, Lamp End of life, Action: Change lamp. 5 Flashes: Lamp failure, Lamp voltage is to low, Action: Change lamp. 6 Flashes: Lamp failure, Lamp voltage is to high, Action: Change lamp. 7 Flashes: Ballast failure, Ballast doesn't work, Action: Change ballast. Apart from the error signals, the LED also displays a single steady signal when the fixture tries to ignite the lamp. Approvals and standards:The MULTIPOINT HID ballasts are tested and approved according to EN61347-2-12, EN61347-1, EN55015, EN61547, EN61000-3-2 and EN61000-3-3. Do you need more information about the MULTIPOINT products, please, send us an  |
 SENSORSMULTIPOINT has TUEX Experts in Export appointed to be her European sales office.MULTIPOINT produces, based on Doppler technics, a small programm with invisible motion detectors. READ MORE >> LED LAMPSTUEX Experts in Export will start soon with the sales of LED lamps.LED lamps are known for their very long lifespan of 35 to 80,000 hours, also under very bad enviromental conditions. READ MORE >> SPECIAL HF-BALLASTMULTIPOINT has TUEX Experts in Export appointed to be her European sales office.MULTIPOINT produces a wide range of pre-settable dimming 0-10 Volt Doppler sensors for all types of 0-10 Volt dimmable ballasts, motor controlls and transformers. READ MORE >> MORE NEWS >> |
